Raised Access Flooring
Maximize space.
Simplify infrastructure.

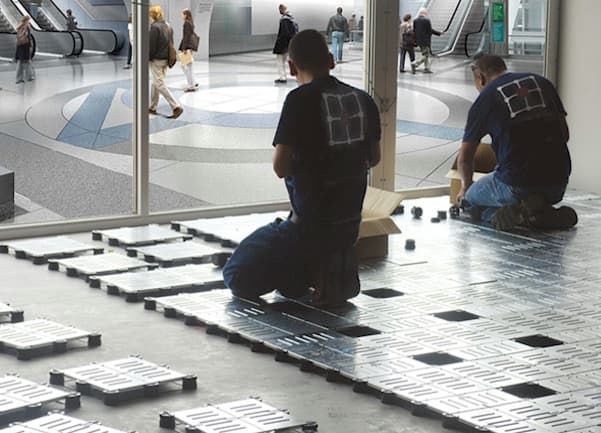

Fountainhead provides low-profile raised access flooring solutions for control rooms, command centers, RTCCs, NOCs, and mission-critical environments. Designed to support power, data, and technology infrastructure, these systems improve cable management, accessibility, flexibility, and future scalability while minimizing floor height requirements.
The flexibility of access flooring — without the height constraints.
Our low-profile raised access floor system delivers the flexibility of traditional access flooring — without the height penalty.
Engineered for use in Type I (Fire Restrictive) and Type II (Non-Combustible) buildings in accordance with the International Building Code, this system is purpose-built for environments where space is limited but performance is non-negotiable.
With a minimal floor height, our system enables efficient cable management, power distribution, and underfloor air delivery while preserving valuable floor-to-ceiling space. It installs easily in both new construction and retrofit applications — making it an ideal solution for offices, control rooms, and light commercial environments.
Designed to integrate seamlessly with standard carpet tiles, the system maintains a clean, professional aesthetic while providing immediate and ongoing access to critical infrastructure below.
Features
Engineered for fast, clean install.
- 01Ultra-low-profile design minimizes floor height while maximizing cable capacity
- 02Dedicated pathway for power, data, AV, and communications infrastructure
- 03Quick-connect modular construction enables rapid installation and deployment
- 04Tool-free assembly — no adhesives, underlayment, or fasteners required
- 05Supports future technology upgrades without major renovation work
- 06Accessible underfloor cable management simplifies maintenance and changes
- 07Ideal for retrofits where traditional raised flooring is impractical
- 08Compatible with modular power distribution for flexible workstation layouts
- 09Durable steel construction for demanding commercial and mission-critical environments
- 10Reconfigurable system adapts to evolving operational and technology requirements
Specifications
Performance where it matters.
| System Type | Ultra-low-profile fixed-height raised access flooring system |
| Finished Floor Height | 2.76 in. (70 mm) |
| Alternative Heights Available | 1.58 in. (40 mm) and 1.97 in. (50 mm) |
| Concentrated Live Load | 2,000 lbf (8.90 kN) — per IBC Table 1607.1 |
| Concentrated Point Load | 500 lbf (2.22 kN) |
| Uniform Live Load | 2,000 lbf (8.90 kN) |
| Ultimate Load Safety Factor | 2-to-1 minimum |
| Rolling Load — 8″ × 2″ Semi-Pneumatic | 500 lb · 10 pass |
| Rolling Load — CISCA Wheel A (3″) | 46 lb · 10 pass |
| System Weight | 3.7 psf (18.1 kg/m²) |
| Construction | Heavy-duty quick-connect steel plate system |
| Installation Method | Tool-free modular assembly — no adhesives required |
| Fasteners Required | None |
| Underlayment Required | None |
| Fire Classification | Suitable for Type I (Fire Restrictive) and Type II (Non-Combustible) buildings per IBC requirements |
Fire Hazard Ratings
ASTM D1929
Self-ignition temperature greater than 650°F (343°C)
ASTM D2843
Maximum average smoke density rating less than 75
ASTM D635
Meets requirements for class CC1
ASTM E648
Meets requirements for NFPA 253 Class I
Threshold & Ramps
Smooth edge-of-floor transitions.

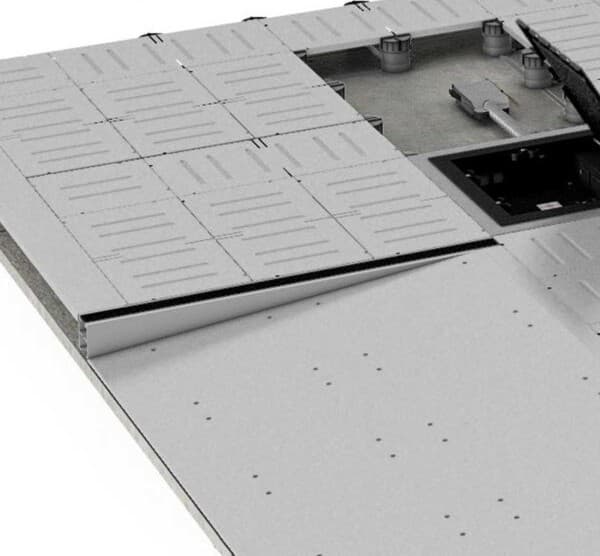

At the perimeter of the raised floor, an extruded aluminum threshold creates a low-slope transition from the surrounding slab. Carts, chairs, and ADA-accessible equipment roll over the edge without catching — no trip hazard, no step.
Threshold profiles are matched to the floor tile height so the carpet transition reads as a single, continuous plane. Ramps and ADA-compliant slopes are available where additional clearance is required.
System Components
Quick2Connect, part by part.

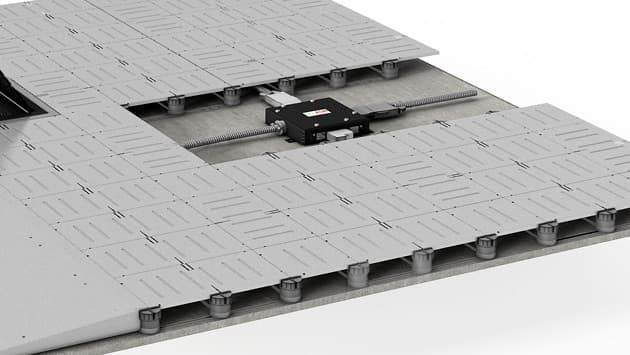

The modular Quick2Connect platform is built from a small set of purpose-engineered components — floor modules, service boxes, ramps, and perimeter plates — that snap together without fasteners, adhesives, or underlayment.

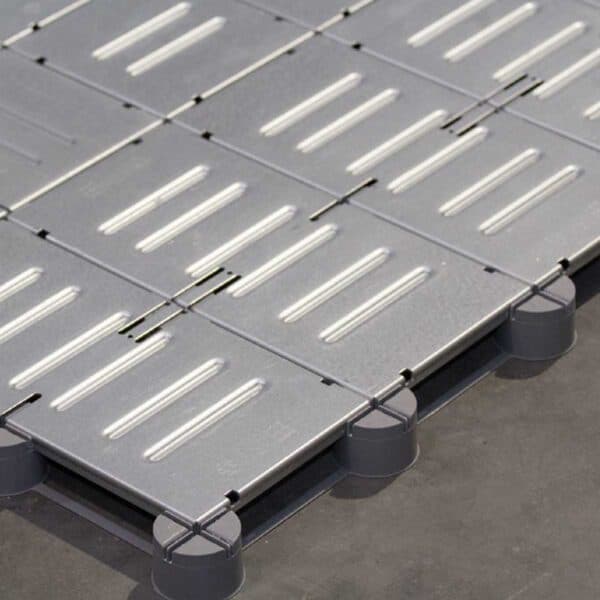

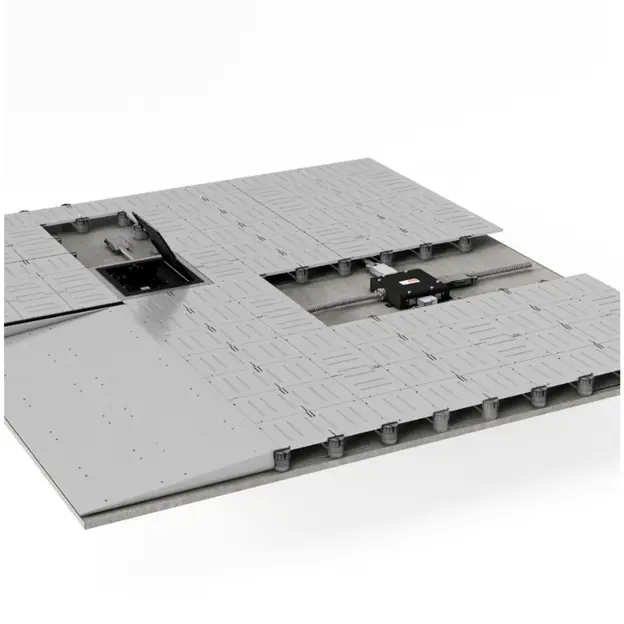

Quick2Connect Floor Module

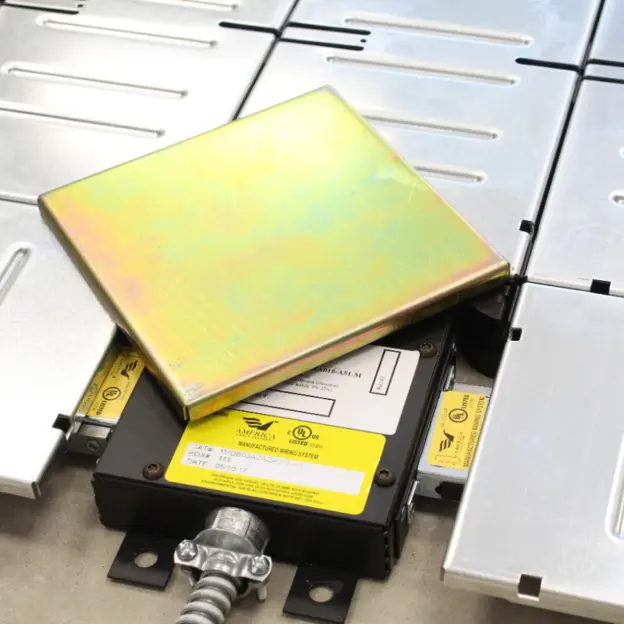

Distribution Box & Identifier Plate

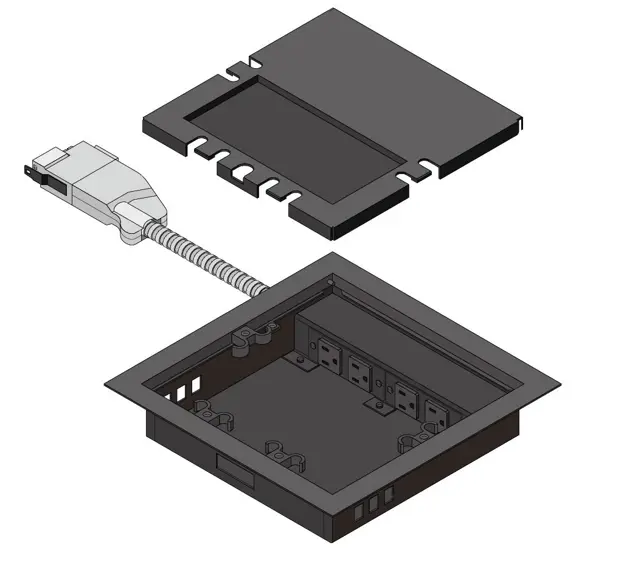

Q2C SLP-10 Service Box

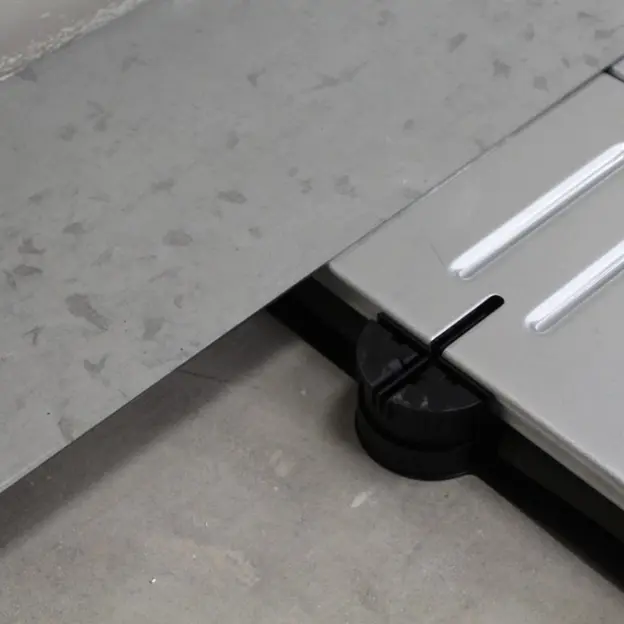

Perimeter Plate
Straight Ramp

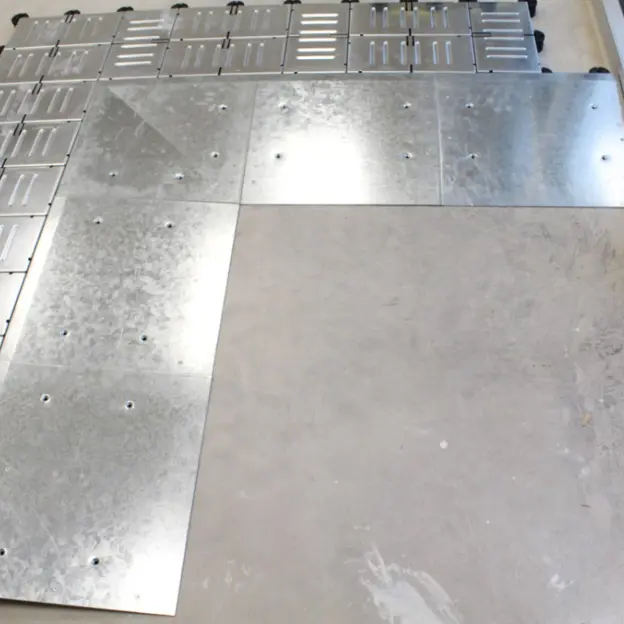

Inside Corner Ramp

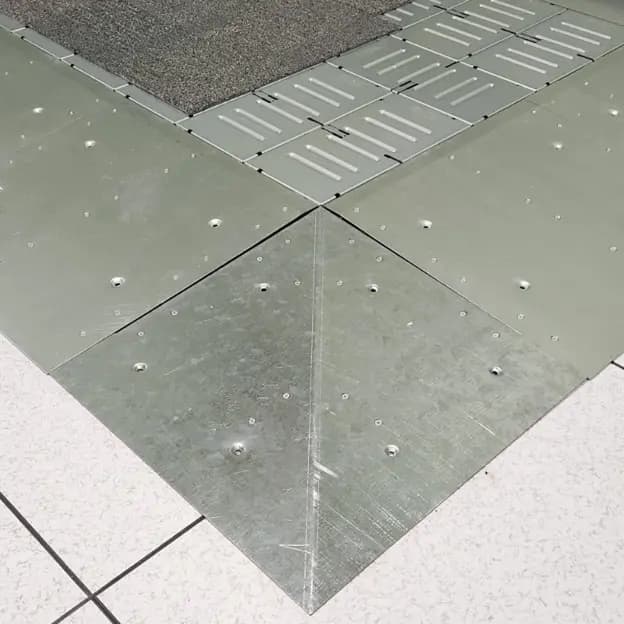

Outside Corner Plate

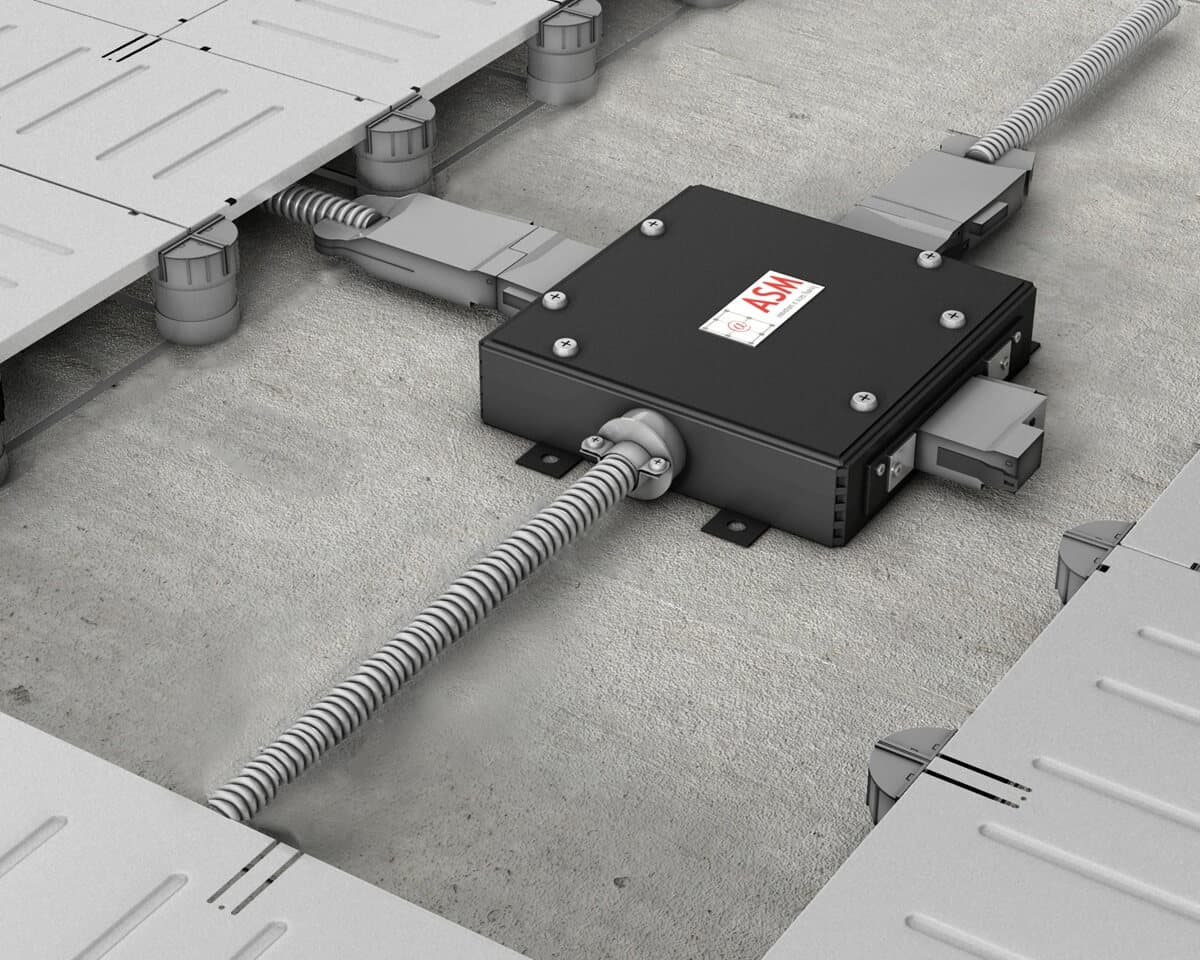

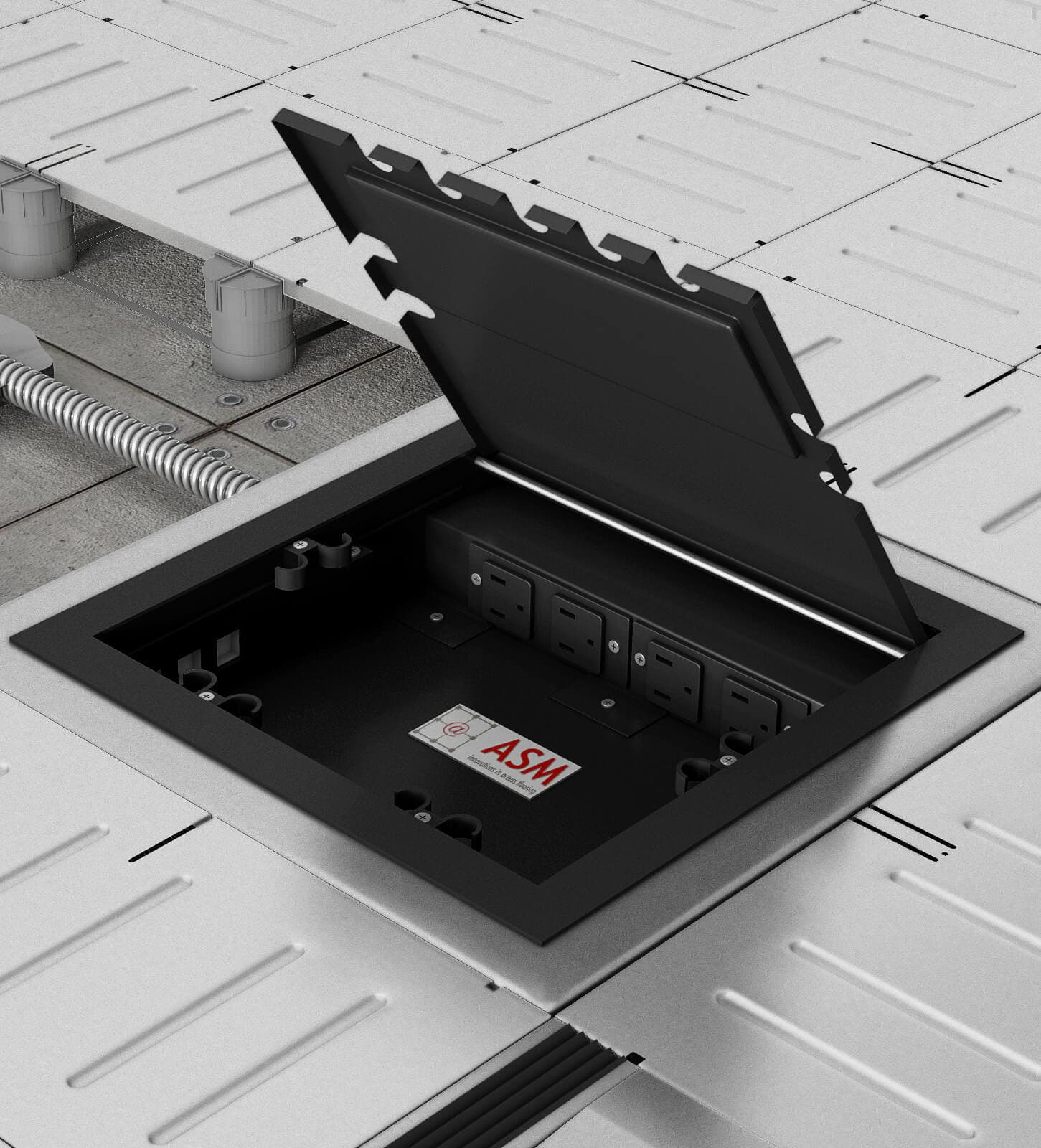

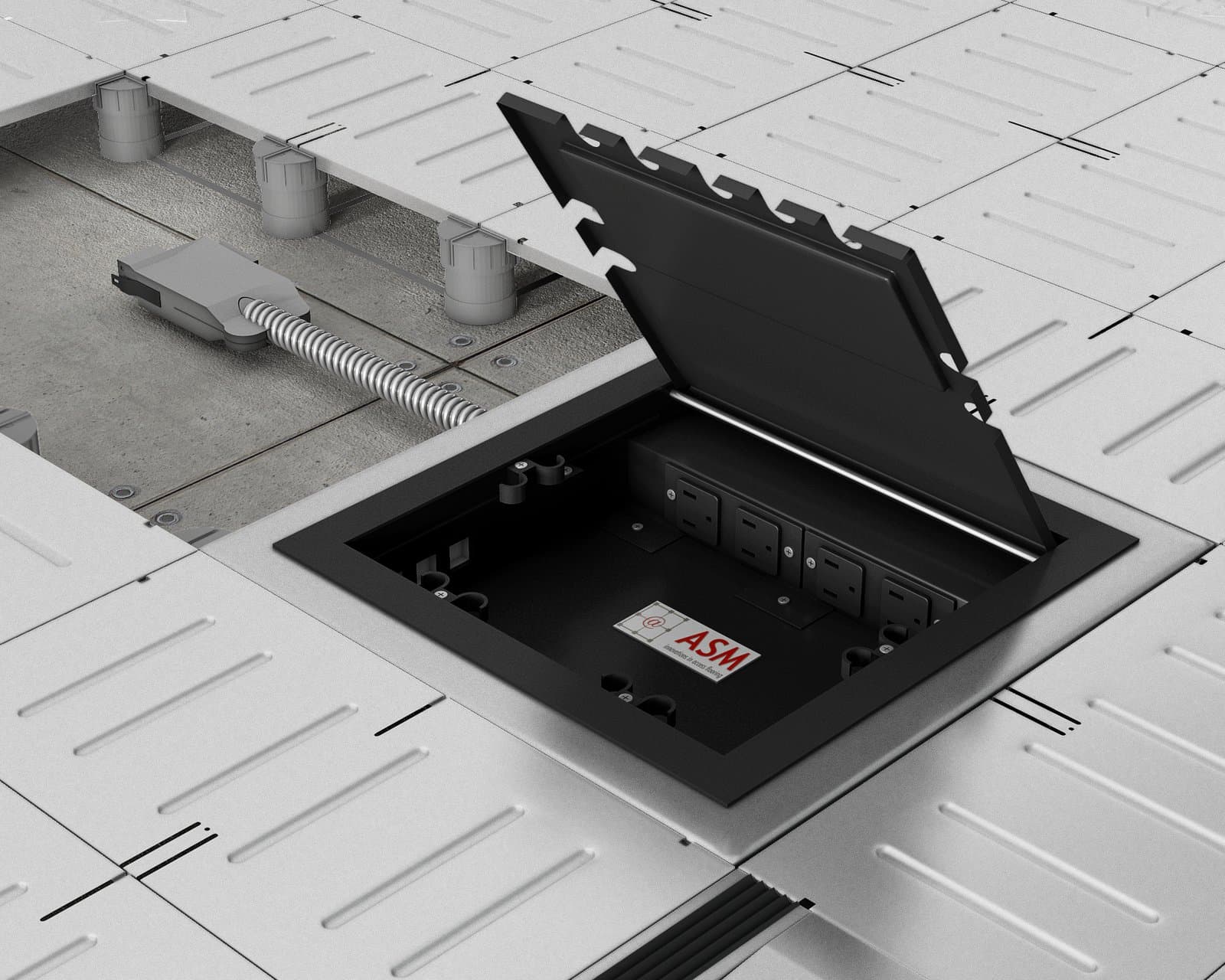

In-Floor Electrical Box

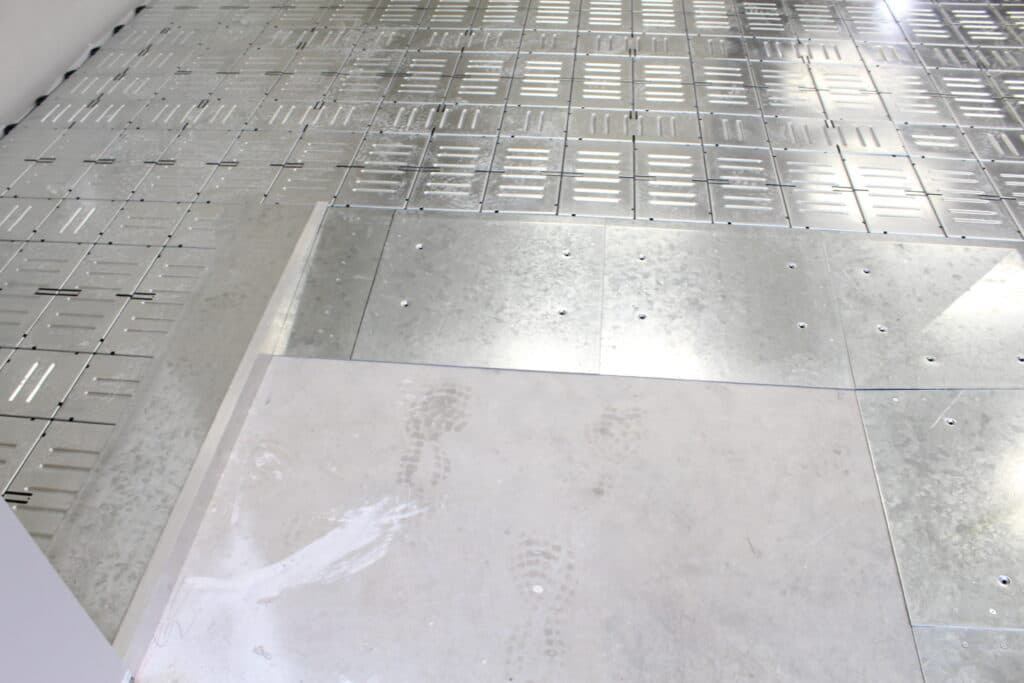

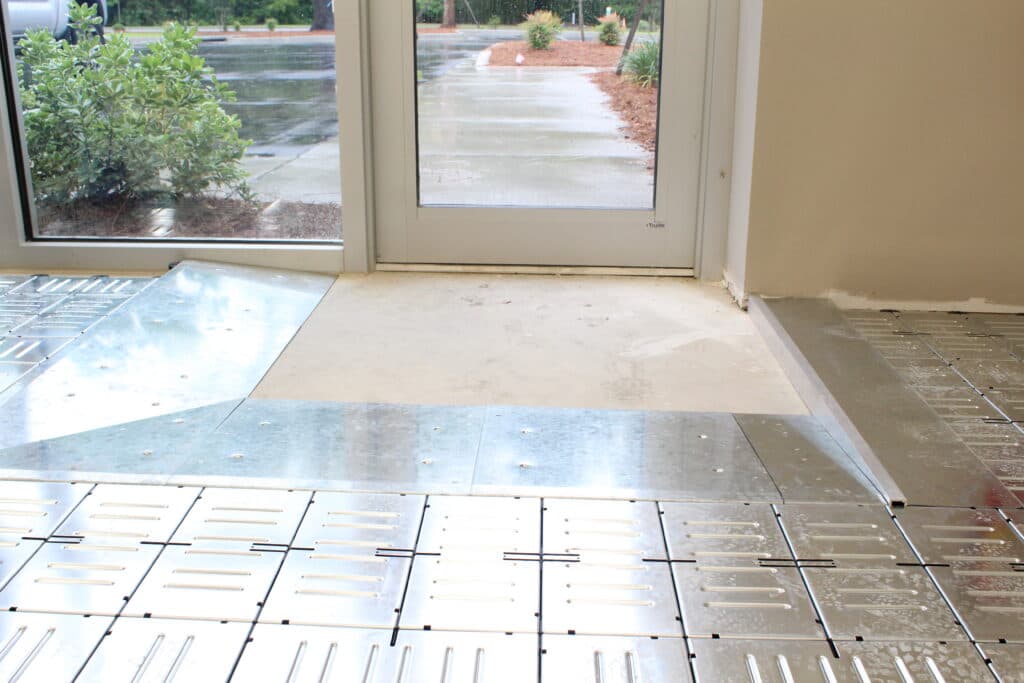

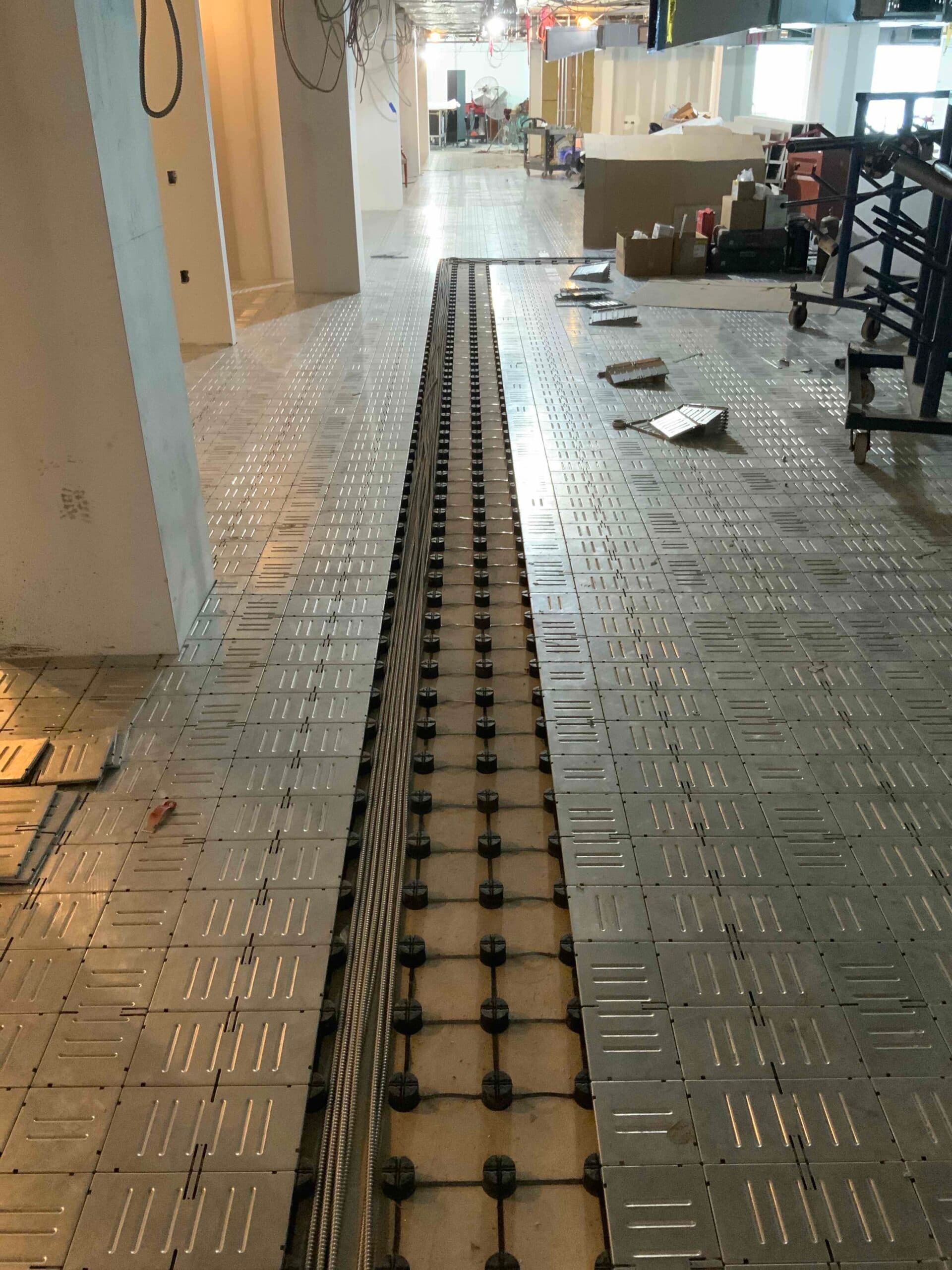

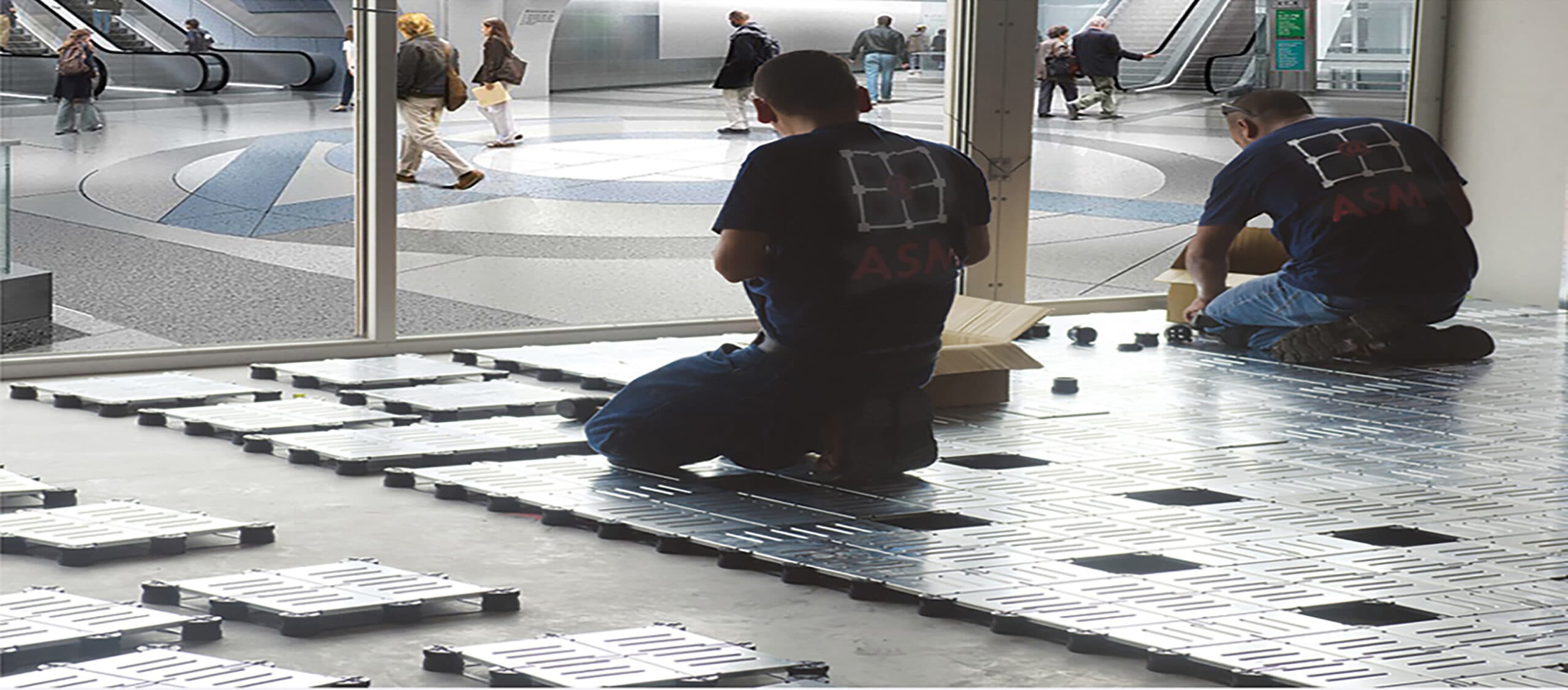

In the Field
Real installs, real environments.
Frequently Asked
Raised Access Flooring questions, answered.
ASM Quick2Connect is a low-profile raised access flooring system designed to route power, data, AV, and communications cabling beneath the floor while maintaining easy access for future changes and upgrades.
Low-profile raised flooring improves cable management, simplifies technology upgrades, reduces workspace clutter, and provides greater flexibility than traditional floor-based cable routing methods.
The Quick2Connect system is available in multiple low-profile heights, including a 2.76-inch (70 mm) configuration, making it ideal for spaces with limited floor-to-ceiling clearance.
Yes. Raised access flooring is widely used in control rooms, RTCCs, dispatch centers, NOCs, and EOCs to support organized cable management and future technology expansion.
Yes. The Quick2Connect system is engineered to support demanding commercial environments, including control room consoles, conference tables, technology equipment, and daily foot traffic.
The accessible underfloor space allows power, data, and communications cabling to be added, removed, or reconfigured without disruptive construction or major facility modifications.
No. The modular quick-connect design is engineered for rapid installation without adhesives, fasteners, or complex assembly procedures.
Absolutely. Its low-profile design makes it an excellent option for renovations and retrofit projects where traditional raised flooring systems may not be practical.
The system can accommodate power distribution, network cabling, AV systems, communications infrastructure, and other technology services required in modern operational environments.
Quick2Connect provides superior flexibility, accessibility, and organization by creating a dedicated underfloor pathway for technology infrastructure, making future changes faster, cleaner, and more cost-effective.
Raised Flooring Inquiry
Need underfloor access without the height penalty?
Talk to our team about how our low-profile raised flooring fits your control room, operations center, or office retrofit.
