Max Sit Stand Consoles
High-Capacity Sit-Stand Consoles
Maximum Capacity. Maximum Control.

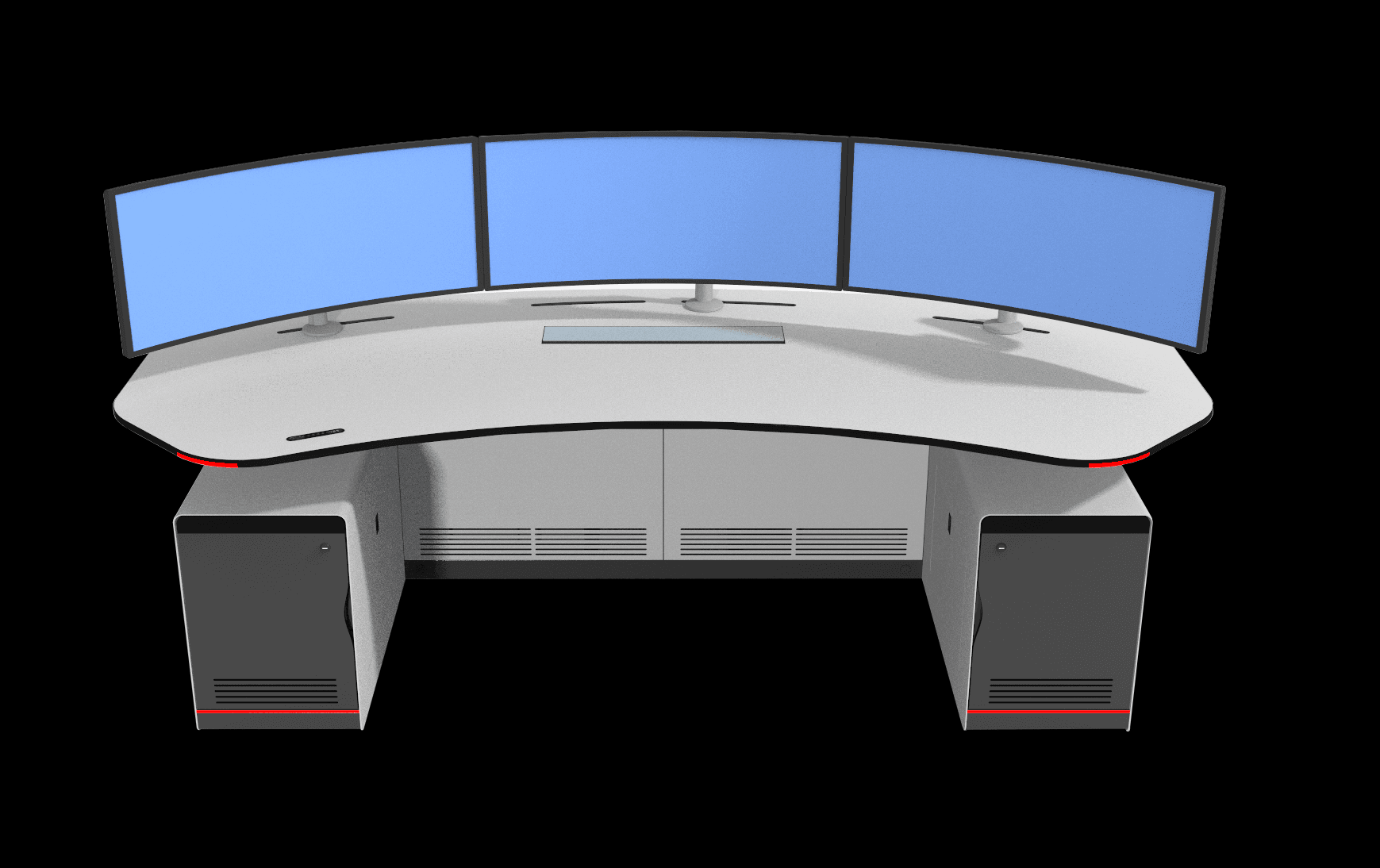

When standard control room consoles reach their limits, the Elite Air Max takes over. Engineered for technology-intensive mission-critical environments, the Air Max offers increased storage capacity, integrated equipment cabinets, superior cable management, and support for larger equipment loads — all while maintaining the ergonomic sit-stand functionality and durability that define the Elite Air series.
Capabilities
Built for the demands of 24/7 operations
Engineered for Maximum Capacity
Built for traffic management centers, control rooms, dispatch centers, command centers, and operations centers, Elite High-Capacity Sit-Stand Consoles are designed to accommodate expansive monitor arrays, advanced technology integration, and demanding operational requirements. The result is exceptional performance, reliability, and flexibility in mission-critical environments.
Ergonomics Without Compromise

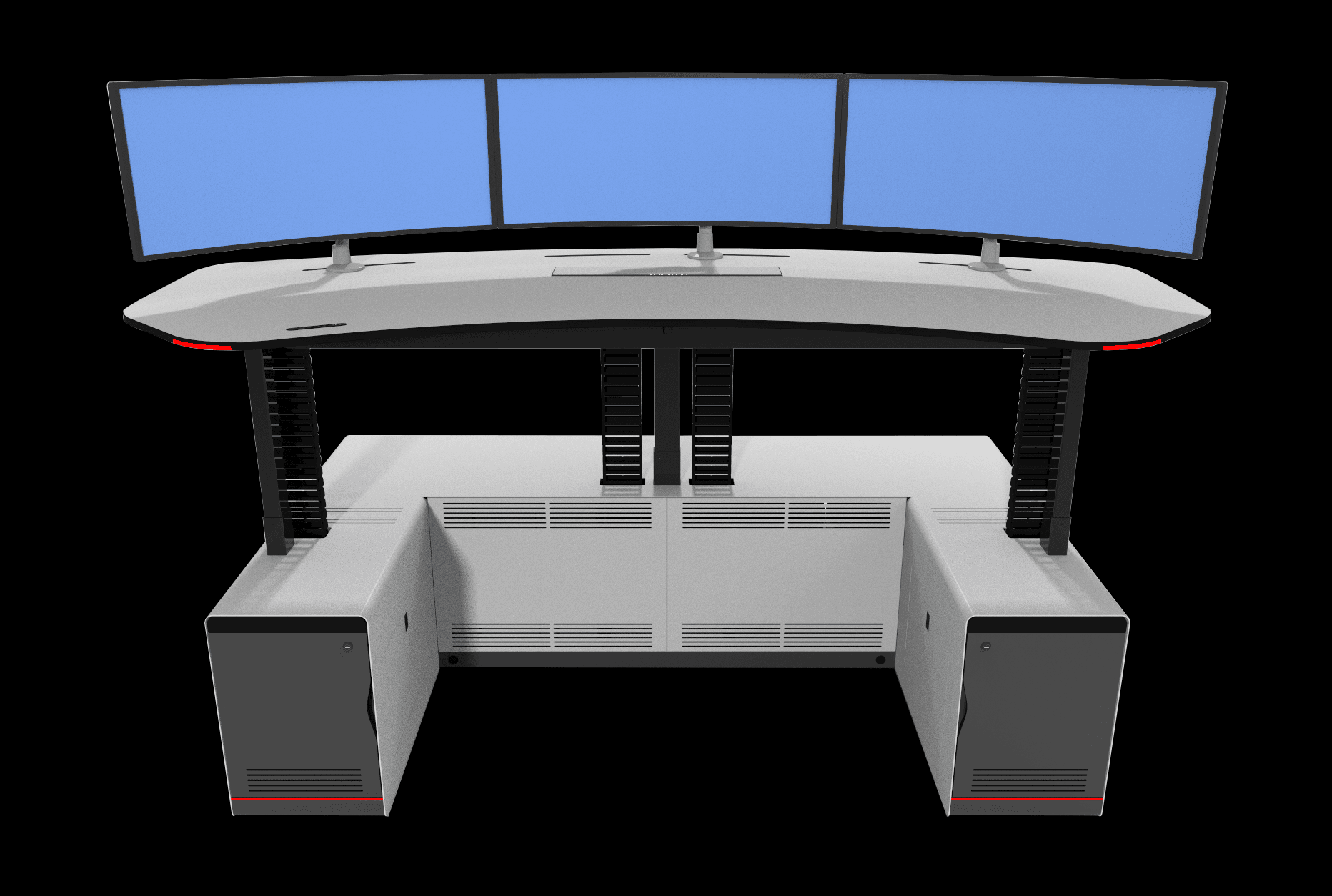

Elite High-Capacity Sit-Stand Consoles allow operators to easily transition between sitting and standing throughout the day, promoting comfort and long-term wellness. The robust lifting system maintains exceptional stability while supporting large monitor arrays, integrated technology, and mission-critical workflows. Structured cable management keeps power and data connections organized, protected, and concealed throughout the full range of motion.
Maximum Capacity. Maximum Control.

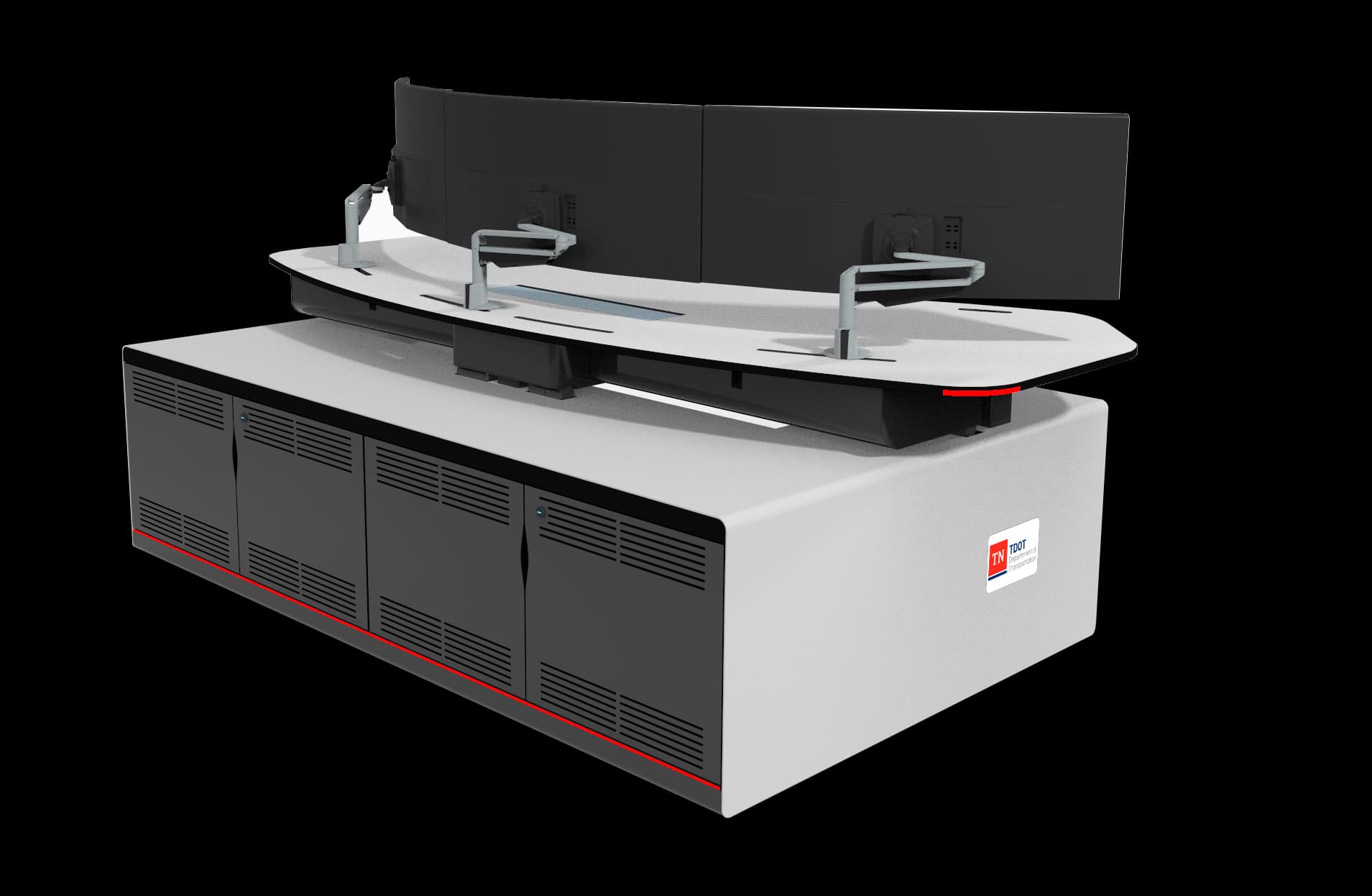

The Elite Air Max is designed for technology-intensive control rooms that require more storage, organization, and equipment capacity. Large rear equipment cabinets accommodate CPUs, network hardware, power supplies, and communications equipment, while integrated cable management keeps power and data pathways organized and accessible. Available thermal management features, including ventilation and active cooling, help protect critical electronics and ensure reliable 24/7 operation. The result is a cleaner, more organized workstation built to support today's technology and tomorrow's growth.
Optimized Performance
The Elite Air Max control room furniture offers a healthier, more productive environment with ergonomic design, reducing strain-related injuries, and optimizing performance for team members.
Proven in the field.

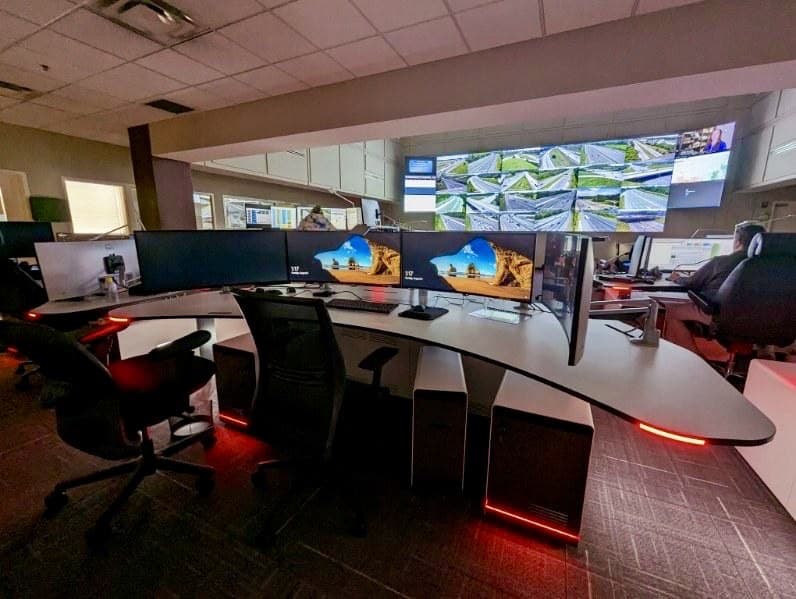

Tennessee DOT's Traffic Management Center runs on a row of Elite High-Capacity consoles built to handle the equipment density and 24/7 demands of a statewide TMC. Real deployments. Real environments. Real performance.
Features & Specifications
At a Glance
Elite AIR Max features and specifications.
- Bespoke custom consoles
- Unlimited configurations
- Increased storage capacity
- Larger size applications
- Ergonomic design
- Phenolic resin worksurface and doors
- Steel and aluminum frames and cabinets
- Durable powder-coat finish
- Anti-glare surface
- Integrated, structured cable management
- Integrated task lighting
- Premium engineered monitor mounts
- Ventilation and cooling systems
- Flexible storage cabinet options
- Additional storage options
- Multiple color options
- Limited lifetime warranty
Specifications
Elite AIR Max Sit-Stand Console Specifications
- Sit/stand height range
- 29 1/4" - 48 3/4" (74.3 – 123.8 cm)
- Worksurface materials
- Solid-core phenolic resin
- Phenolic resin impact resistance
- EN ISO 178 (8mm)
- Phenolic resin scratch resistance
- EN 438-2:25 - 5
- Frame materials
- Powder-coated steel and aluminum
- Access door materials
- Phenolic Resin
- Cabinet drawer usable interior dimensions
- 14" W × 11 7/8" D × 2 7/8" H (35.5 x 30.2 x 7.3 cm) x 3 drawers
- 2 PC/ 19” Rack mount cabinet capacity
- 18.7” x 27” x 18.4” (47.5 x 68.6 x 46.7 cm)
- 2 PC/ 19” Rack mount cabinet dimensions
- 21.2” x 29.5” x 22.4” (53.8 x 74.9 x 56.9 cm)
- 2 PC/19” rack mount cabinet RU
- 10U
- 1 PC cabinet capacity
- 8.5” x 27” x 18.5” (21.6 x 68.6 x 47.0 cm)
- 1 PC cabinet dimensions
- 11.0” x 29.5” x 22.4” (27.9 x 75.0 x 56.9 cm)
- Rear cabinet, small
- 38.0” x 20.0” x 8.0” (96.5 x 50.8 x 20.3 cm) lift-off door
- Rear cabinet, large
- 57.0” x 23.0” x 15.0” (144.8 x 58.4 x 38.1 cm) Hinged access doors
- Rear cabinet, custom
- any size, any capacity
- Lift columns capacity
- 551 lb. (250 kg)
- Monitor mount
- Fully adjustable monitor arms
- Accent lighting
- LED and RGB available
- Desktop connectivity
- Power and data
- Cable access – Front and rear access panels
- Storage access – Front and rear access doors
- PC access
- Pull-out tray
Finishes & Materials
Finishes & Materials
Every Elite console is built to order using premium powder-coated steel and aluminum, and phenolic resin worksurfaces. Along with standard colors, custom colors, graphics, acrylic accents, lighting, accessories, and branding options allow each console to be tailored to your facility and operational requirements.
Main Frame, Feet and Cabinets
Steel — White
RAL 9010
Steel — Aluminum Grey
RAL 9006
Steel — Anthracite
RAL 7021
Work Surfaces, Doors and Drawers
HPL Phenolic — Maxwhite
0085
HPL Phenolic — Aluminum
1300
HPL Phenolic — Charcoal
0077
Certifications
Certifications & Credentials
ISO 11064 Compliant
Elite AIR Max is engineered to meet ISO 11064 standards for ergonomics and human factors in mission-critical environments.
Veteran Owned Small Business
Proudly Veteran Owned and Operated. Serving mission-critical environments since 2013.
Frequently Asked
Elite AIR Max questions, answered.
The Elite Air Max is designed for technology-intensive control rooms, command centers, RTCCs, and operations centers. It provides expanded equipment storage, integrated cable management, and thermal control while maintaining the ergonomic sit-to-stand functionality required for 24/7 mission-critical operations.
The Elite Air Max features larger workstations, expanded equipment storage, premium materials, and advanced cable management. Designed for 24/7 control rooms, RTCCs, command centers, and operations centers, it supports greater technology loads while maintaining operator comfort and durability.
Yes. The Elite Air Max can be customized to support specific operational, technology, and workflow requirements. Options include console size, finishes, monitor mounting, storage, lighting, branding, and power/data integration for control rooms, command centers, RTCCs, SOCs, and other mission-critical environments.
The Elite Air Max is designed to support substantial technology loads, including multiple CPUs, network equipment, power supplies, communications hardware, and AV components. Its expanded equipment cabinets provide the capacity needed for applications with greater technology, equipment, and integration requirements.
The Elite Air Max can accommodate computers, network switches, KVM systems, communications equipment, power distribution hardware, AV components, and other mission-critical technologies. Integrated equipment cabinets, cable management, and available thermal management features help keep technology organized, protected, and operating reliably.
Yes, in fact all Fountainhead Control Rooms consoles are designed to support integrated thermal management, including ventilation and active cooling options. These systems help maintain proper operating temperatures, improve equipment reliability, and support 24/7 mission-critical operations.
The Elite Air Max is ideal when your control room requires greater equipment storage, larger work surfaces, enhanced cable management, or integrated technology cabinets. It is designed for technology-intensive environments with higher operational demands.
Yes. The Elite Air Max is designed to support large video wall environments and multi-monitor operator workstations. Its larger footprint, equipment capacity, and technology integration capabilities make it ideal for RTCCs, command centers, and operations centers.
Yes. The Elite Air Max is designed with scalability in mind, providing additional space for future equipment, cabling, and technology upgrades. Its flexible architecture helps control rooms and command centers adapt as operational requirements evolve.
The Elite Air Max improves operational performance by combining ergonomic sit-to-stand functionality with expanded technology storage, integrated cable management, and thermal management. Designed for technology-intensive control rooms and command centers, it helps operators stay organized, focused, and productive during 24/7 operations.
MDF and laminate furniture are designed for office environments, not 24/7 control rooms. Elite Air Max consoles use industrial-grade steel, aluminum, and phenolic resin worksurfaces for superior durability, moisture resistance, and long-term performance in mission-critical command centers and operations centers.
